Project Description
- Certificate: ISO
- Standard: BS EN 14384, EN 1074-6
- Connection: Base flanged as EN 1092-2 PN 16, ASME B16.5 Class 150, etc.
- W. pressure: 16 bar / 20 bar
- Temperature: 4°C to 70°C
- Surface: Red powder coating (RAL 3000)
-
Product Details

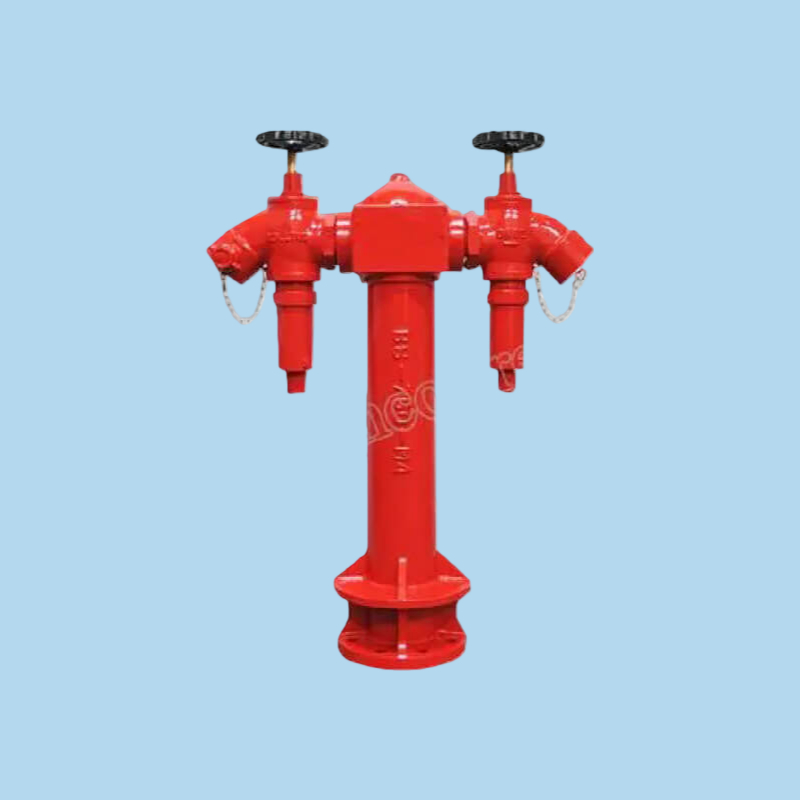

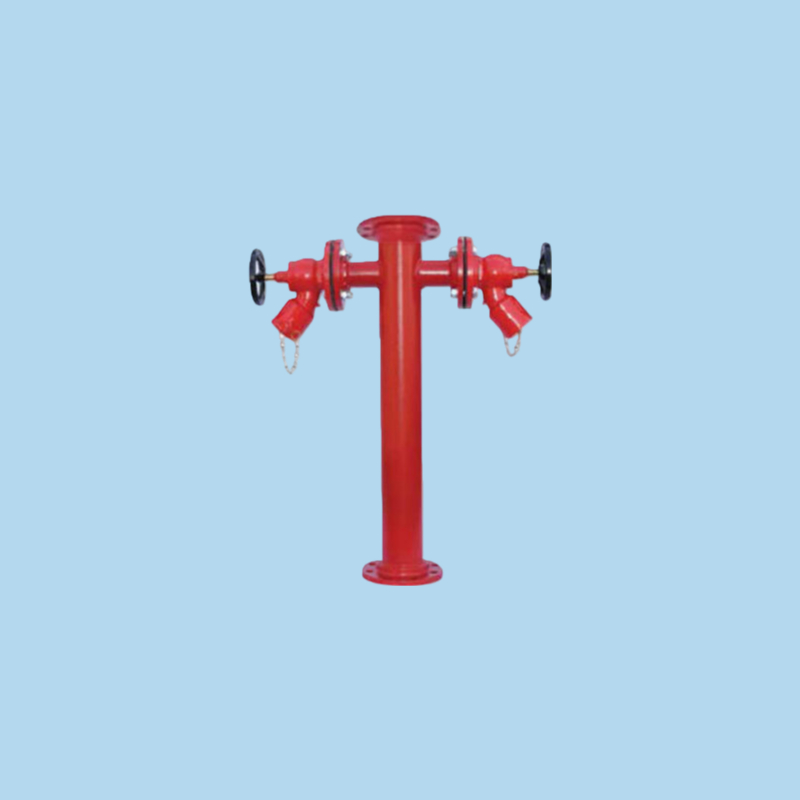

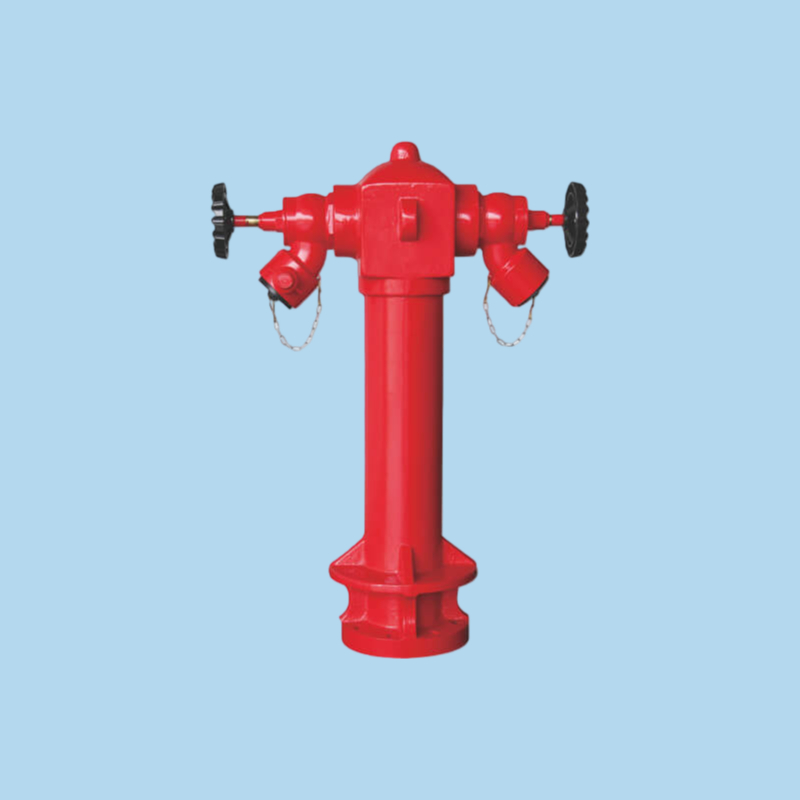

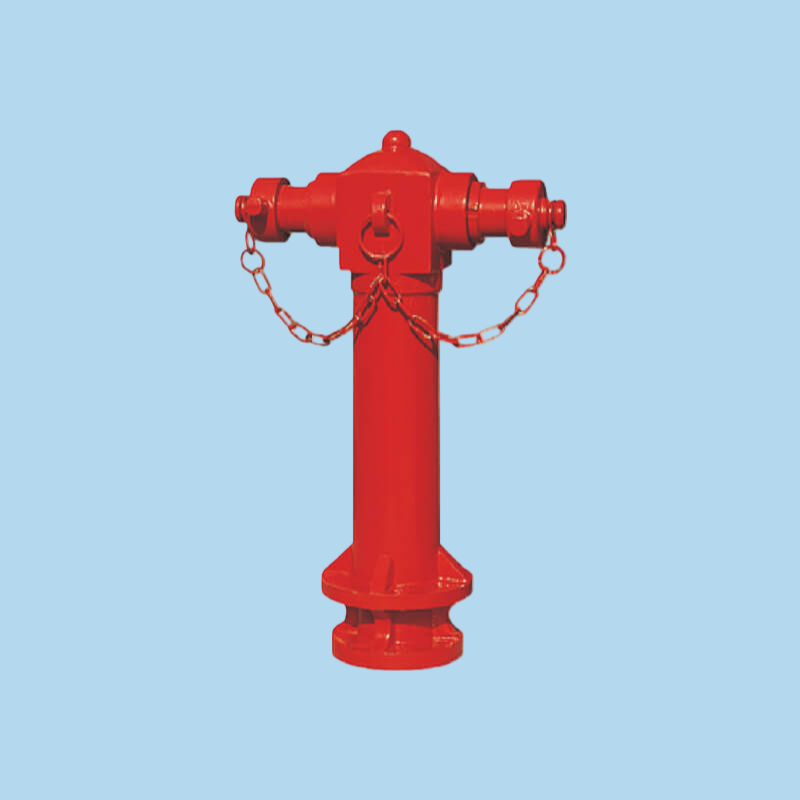

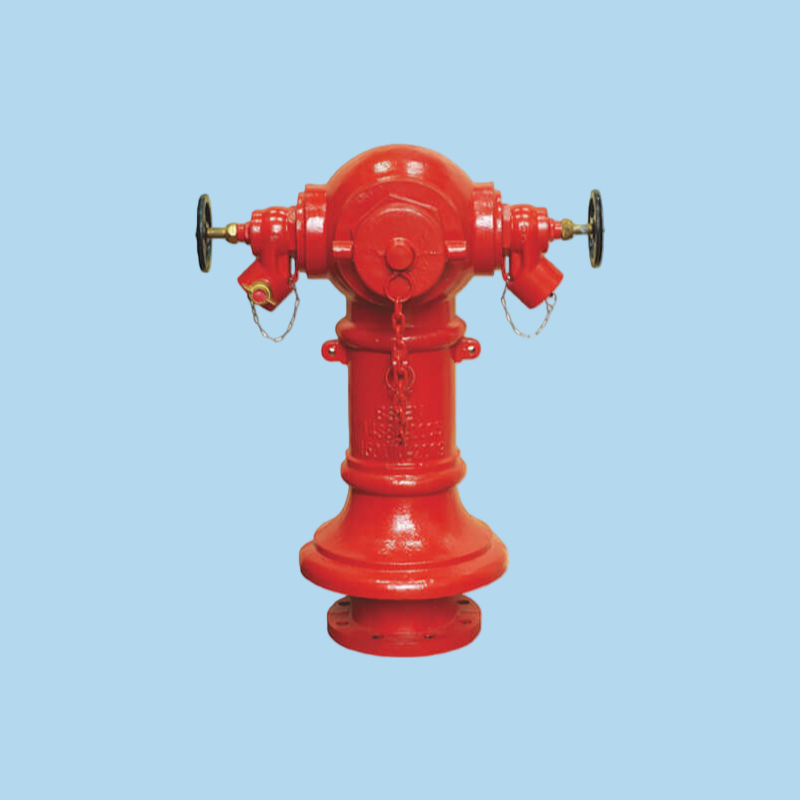

Pillar fire hydrant emerges from below ground level in column shape, and is to supply water to firefighting equipment. For wet pillar fire hydrant, it is normally used in nonfrozen areas and the column remains full of water.
Available size (Source 1 with ISO)
Inlet flange Body material Way of outlet Hose outlet Pumper outlet Monitor flange Ref. No. DN 100 Ductile iron 2-way (2) 2.5″ BS336 landing valve / / FE0101 DN 100 Ductile iron 2-way (2) 2.5″ BS336 landing valve (BSI) / / FE0102 DN 100 Ductile iron 2-way (2) 2.5″ BS336 landing valve (LPCB) / / FE0103 DN 100 Ductile iron 2-way (2) 2.5″ Storz landing valve / / FE0104 DN 100 Ductile iron 2-way (2) 2.5″ BS336 / / FE0105 DN 100 Ductile iron 2-way (2) 2.5″ Storz / / FE0106 DN 100 Ductile iron 2-way (2) 2.5″ BS336 PRV / / FE0107 Available size (Source 2 with ISO)
Inlet flange Body material Way of outlet Hose outlet Pumper outlet Monitor flange Ref. No. DN 100 Gray cast iron 2-way (2) 2.5″ BS336 landing valve / / FE0121 DN 100 Gray cast iron 2-way (2) 2.5″ BS336 pressure regulating valve / / FE0122 DN 150 Gray cast iron 3-way (2) 2.5″ BS336 landing valve (1) 4″ BSRT / FE0123 DN 150 Gray cast iron 3-way (2) 2.5″ BS336 landing valve (LPCB) (1) 4″ BSRT / FE0124 DN 150 Gray cast iron 3-way (2) 2.5″ Storz landing valve (1) 4″ Storz / FE0125 DN 100 Carbon steel 2-way (2) 2.5″ BS336 landing valve / / FE0126 DN 100 Carbon steel 2-way (2) 2.5″ BS336 landing valve / DN 100 FE0127 DN 150 Carbon steel 2-way (2) 2.5″ BS336 landing valve / / FE0128 DN 150 Carbon steel 2-way (2) 2.5″ BS336 landing valve / DN 100 FE0129 Note: For FE0126 and FE0128, a monitor flange DN100 (ASME B16.5 Class 150 or EN 1092 PN16) is fitted on the top of the hydrant, so to connect additional fire monitor.
