Project Description

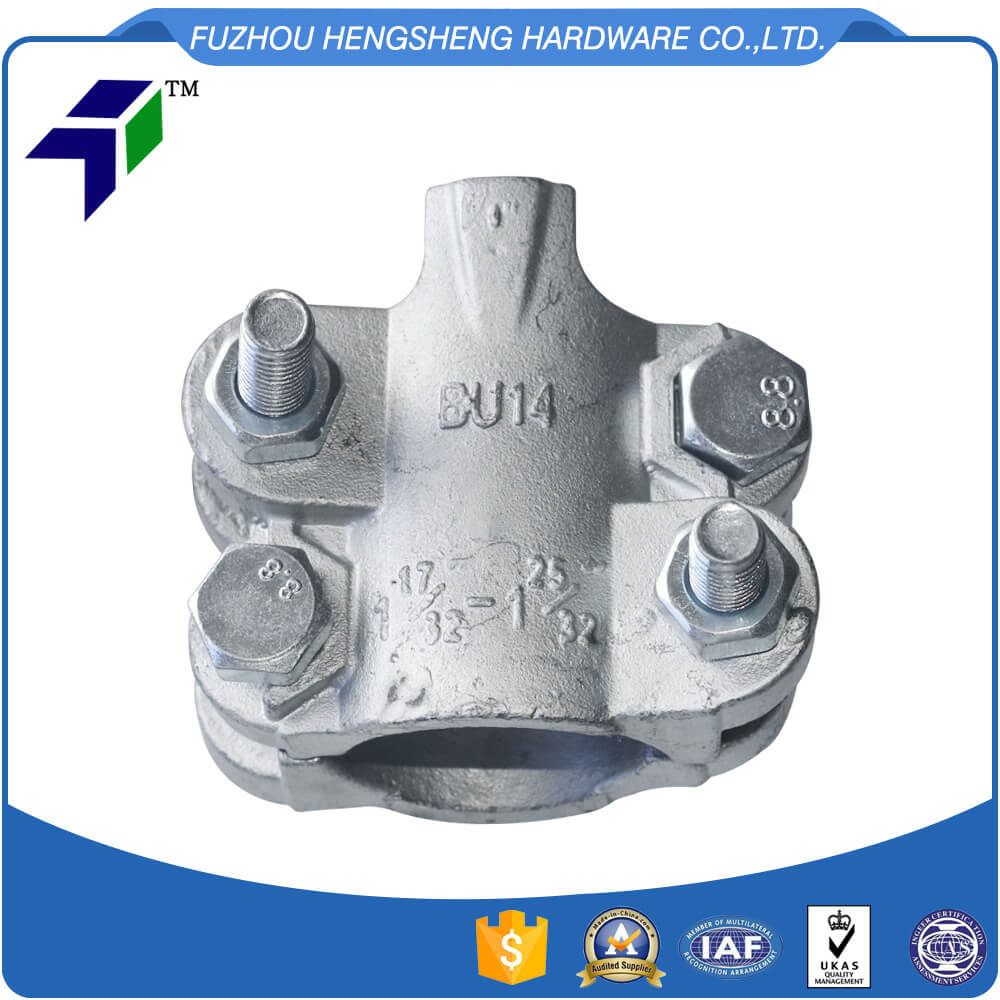

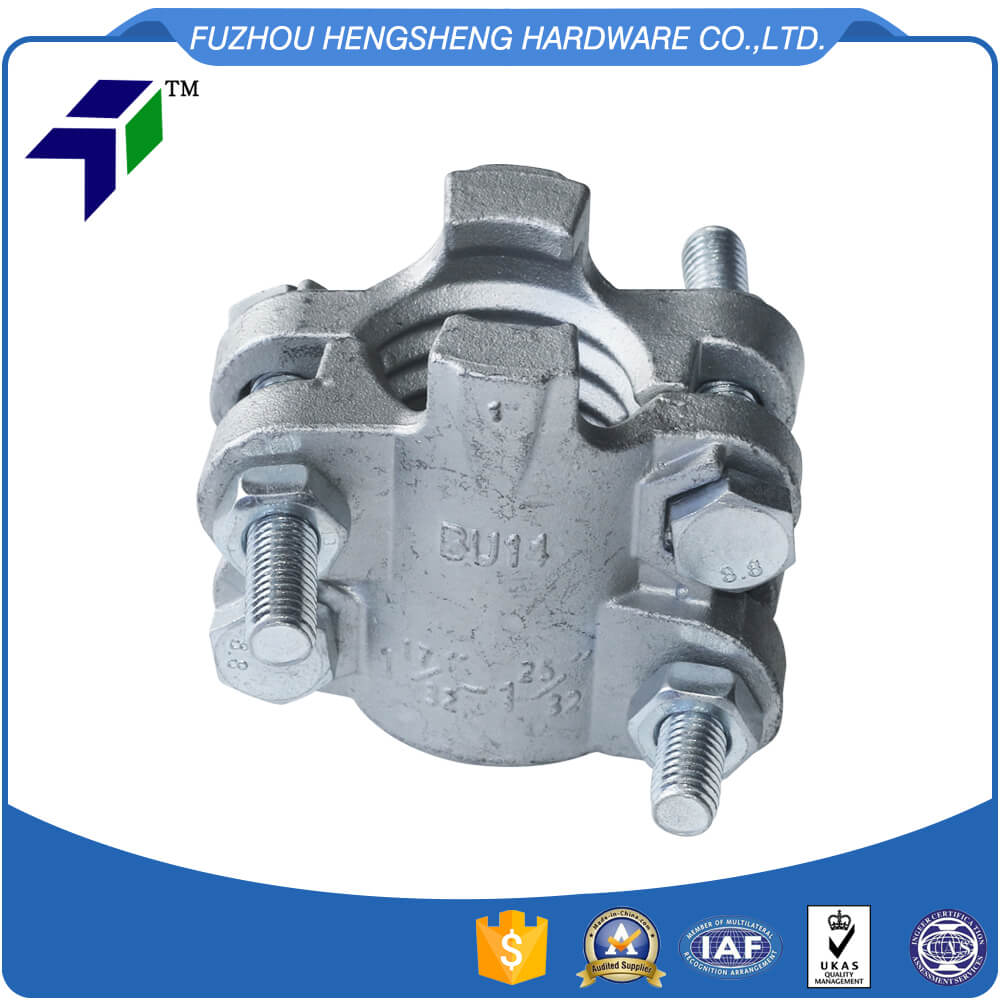

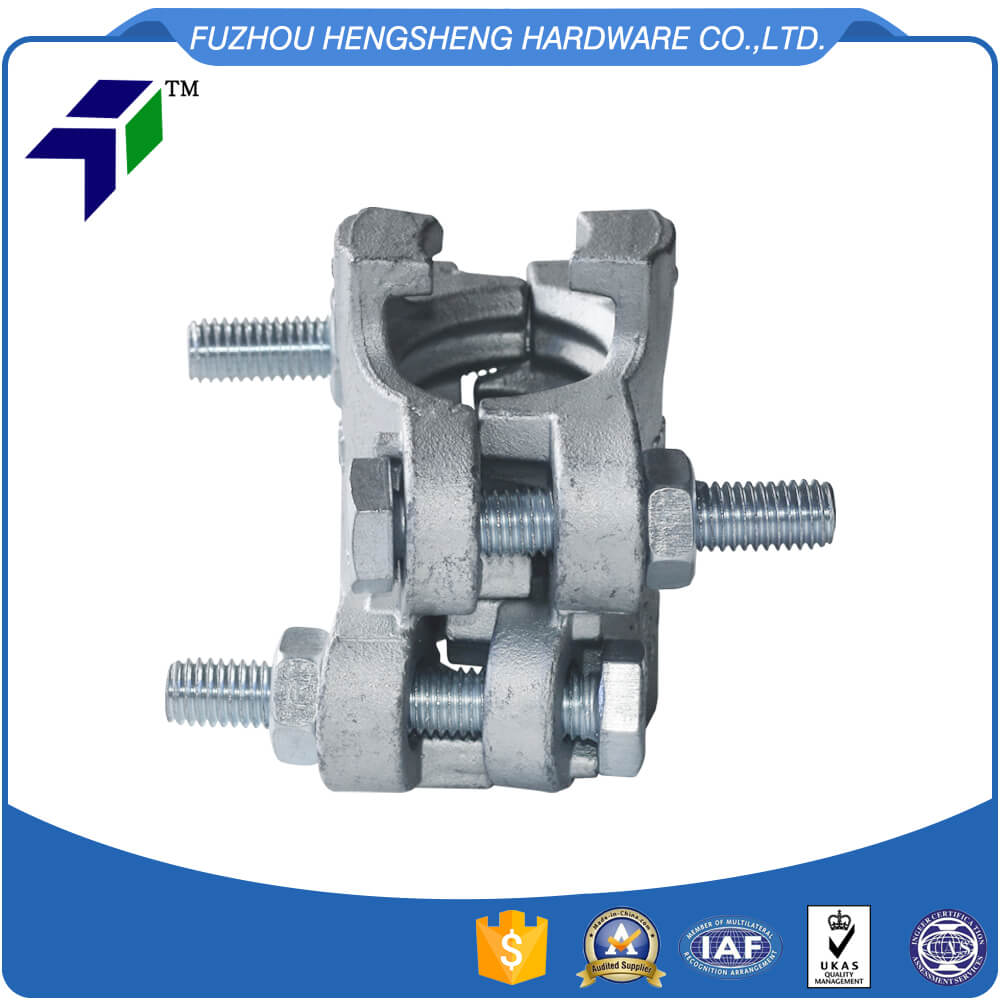

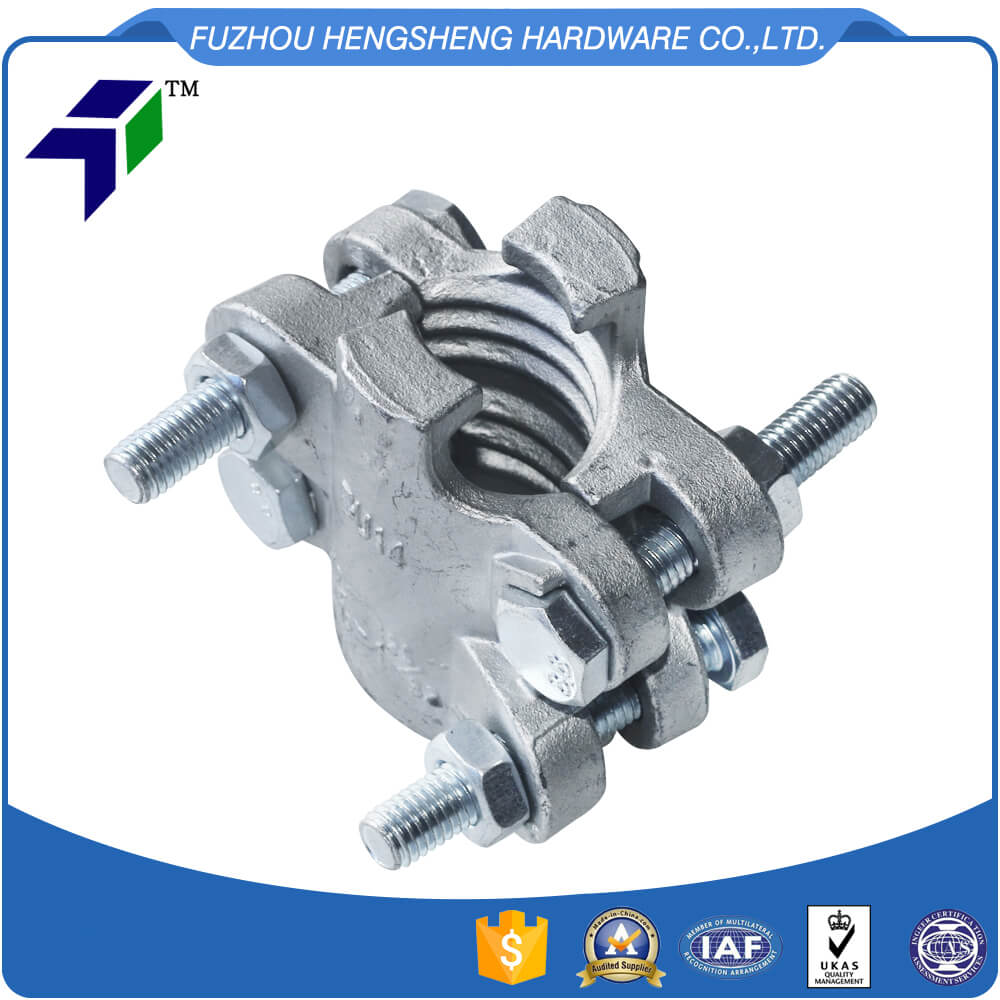

Interlock Clamp tow two or four bolt clamp
Size: 1/2″~2″
Casting method: Precision casting(silica sol)
Surface Treatment: polishing or sand-blast
Thread:BSP (We usually make the female thread parallel BSPP, male thread tapered BSPT)
Main Body Material: Carbon steel, precision casting.
Working Pressure: 16bar/230psi
Test Pressure: 30bar/435bar
Minimum Burst Pressure: 50bar/725psi
Standard: EN 14420-8/NF E 29-572
1. Competitive prices
We have our own foundry with machining, assembling, testing all together, we are able to control the cost and quality in every step.
2. High and stable quality in both casting and machining
A. We use standard raw material from big factory, we provide chemical composition if needed.
B. We cast the products by ourselves, our castings are good quality.
C. We use diamond cutting (machining) tool, whip keep the product good quality and shiny.
3. Big volume regular stock
We keep 150000+ pcs of regular casting, semi-finished products and finished products in stock, which enable us to deliver the goods in time.
