Camlock coupling (B)

Home/Camlock coupling (B)

description1

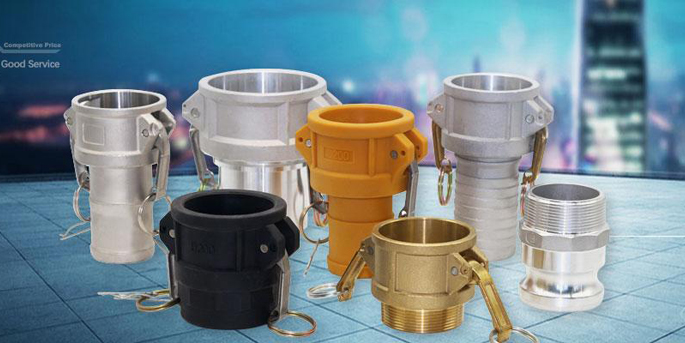

Camlock fitting
Standard: Our camlock fitting are made to standard of A-A-59326 (superseding MIL-C-27487) or DIN 2828.
Material: Aluminum, Brass, Stainless steel, Polypropylene
Sizes: From 1/2″ to 8″
Types: A, B, C, D, DC, DP, E, F
Cam levers: We use stainless steel cam levers or brass cam levers.
Pins, Rings and Safety clips: We use steel plated or stainless steel Pins, Rings and Safety clips.
Sealings: NBR, EPDM, Viton, PTFE envelop gasket, Other materials are available on request.
Threads: NPT, BSP (We usually make the female thread parallel BSPP, male thread tapered BSPT)

product photos

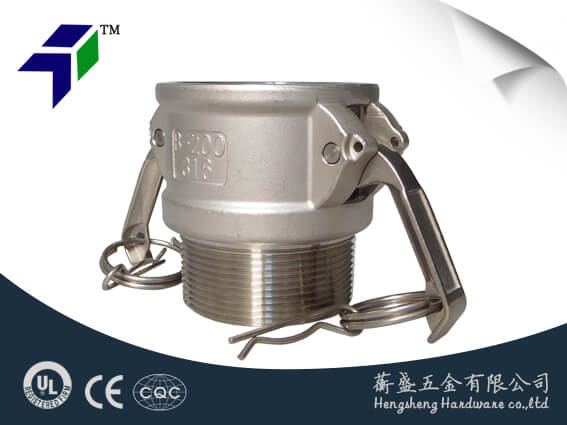

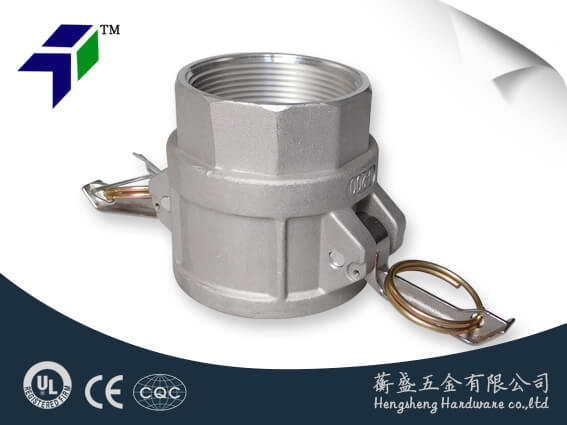

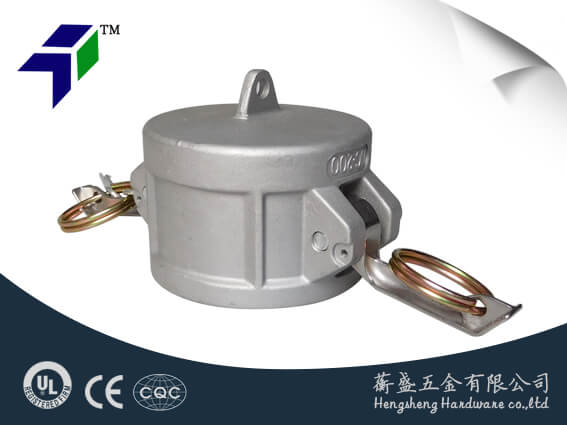

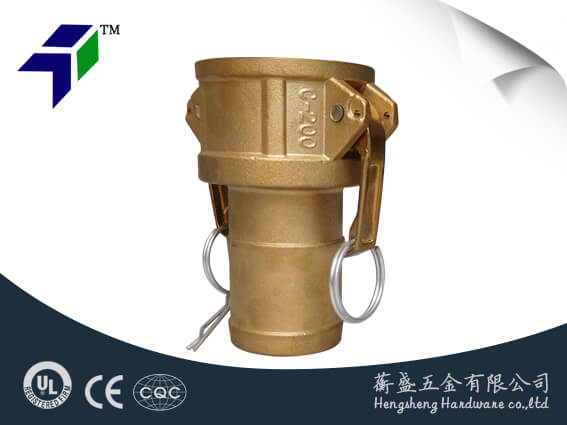

stainless-steel-camlock-coupling-b2 brass-camlock-coupling-part-c2 alum-camlock-coupling-d2 alum-camlock-coupling-dc2
