Project Description

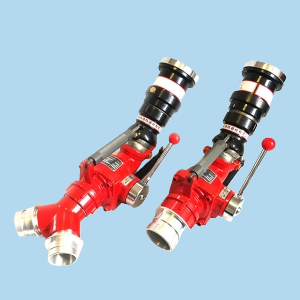

The portable fire fighting monitor from Winner can be used for firefighting, cooling or as a water shield, among others. It is used manned or unmanned, as required.
Impressed with
- Robust and lightweight construction
- Folding and space-saving
- Continuously adjustable stream pattern
- Easy and quick to maneuver, stable operation
- Can be stored in small spaces on vehicle
- Low center of gravity for stable operation
- Unmanned operation possible (observe safety guidelines)
- Can be delivered with all common coupling systems
Product Parameter
| Model | Rated Working Pressure (Mpa) | Working Pressure Range (Mpa) | Rated Flow (L/S) |
Range (m) | Pitch Angle | Horizontal Angle | Spray Angle |
| PS 20 | 0.8 | 0.5~1.2 | 20 | ≥48 | -30°~70° | 360° | ≥100° |
| PS 30 | 30 | ≥55 | |||||
| PS 40 | 40 | ≥60 | |||||
| PS 50 | 50 | ≥70 |
