Project Description

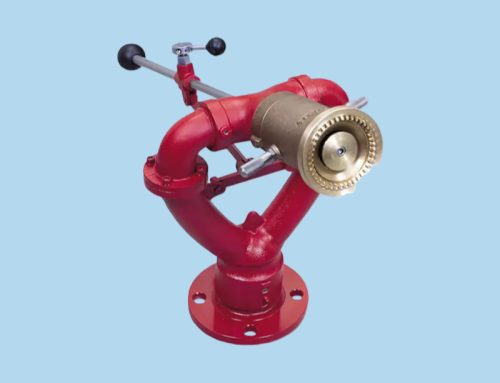

The portable fire fighting monitor from Winner can be used for firefighting, cooling or as a water shield, among others. It is used manned or unmanned, as required.
Impressed with
Robust and lightweight construction
Folding and space-saving
Continuously adjustable stream pattern
Easy and quick to maneuver, stable operation
Can be stored in small spaces on vehicle
Low center of gravity for stable operation
Unmanned operation possible (observe safety guidelines)
Can be delivered with all common coupling systems
Product Parameter
| Model | Rated Working Pressure (Mpa) | Working Pressure Range (Mpa) | Rated Flow (L/S) |
Range (m) | Pitch Angle | Horizontal Angle | Spray Angle |
| PS 20 | 0.8 | 0.5~1.2 | 20 | ≥48 | -30°~70° | 360° | ≥100° |
| PS 30 | 30 | ≥55 | |||||
| PS 40 | 40 | ≥60 | |||||
| PS 50 | 50 | ≥70 |
