Project Description
- Certificate: FM Approved
- Standard: NFPA 1964, GB 19156
- Connection: Threaded, flanged as ANSI Class 150, EN 1092 PN16, etc.
- Feature: Lever control, double waterway, straight jet, wide spray
- Rotation: 360° horizontal
- Elevation: 70° above + 60° below, etc.
- W. pressure: 200 psi
- Surface: Red FBE coating
Product Details

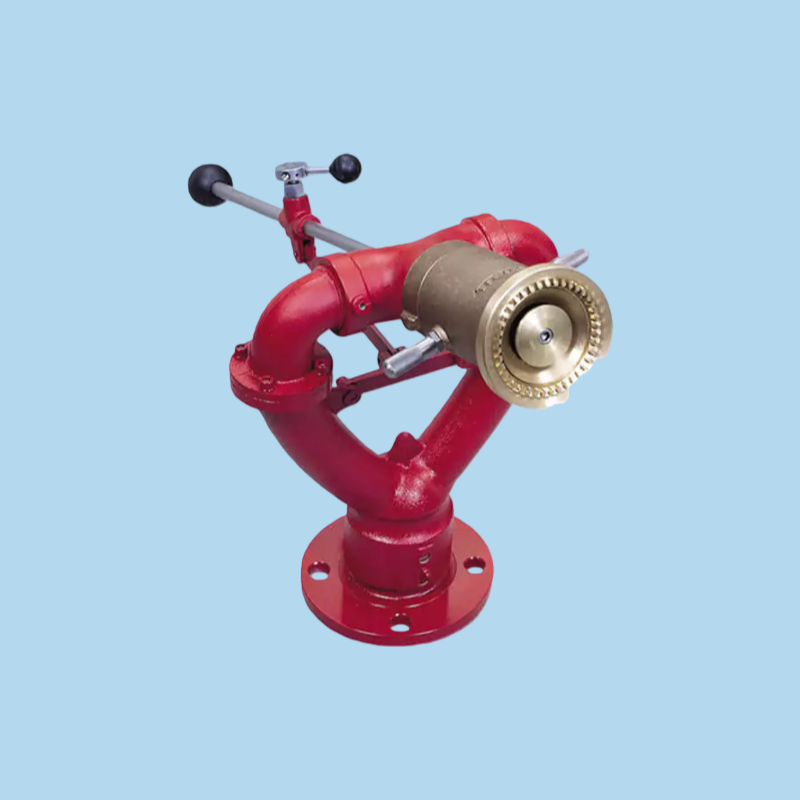

Manual operated lever control fire monitor (Double waterway) is designed with large clear waterway to deliver a powerful and far-reaching water stream. It is mounted in fixed installation or on vehicle for one man operation.
Available size (Source 1 with FM)
| Flow @ 100 psi (GPM) | Material | Base inlet | Nozzle type | Ref. No. |
|---|---|---|---|---|
| 500 | Brass | 2.5″ THD / 2.5″ ~ 6″ FLG | Constant gallonage | Y3101 (FM) |
| 750 | Brass | 2.5″ THD / 2.5″ ~ 6″ FLG | Constant gallonage | Y3102 (FM) |
| 300, 500, 700 | Brass | 2.5″ THD / 2.5″ ~ 6″ FLG | Adjustable flow | Y3103 (FM) |
| 250-400-550-750 | Brass | 2.5″ THD / 2.5″ ~ 6″ FLG | Selectable gallonage | Y3104 (FM)* |
Note:
1. For flanged type base inlet, it is FM. And the inlet size is available with 2.5″, 3″, 4″ and 6″.
2. For threaded type base inlet, it is ISO.
3. *For Y3104, the pre-assembly nozzle is ISO, not FM.
Available size (Source 2 with ISO)
| Flow @ 7 bar (LPM) | Material | Base inlet | Nozzle type | Ref. No. |
|---|---|---|---|---|
| 1200 | AL | 3″ or 4″ FLG | Constant gallonage | Y3121 (ISO) |
| 1800 | AL | 3″ or 4″ FLG | Constant gallonage | Y3122 (ISO) |
| 2400 | AL | 3″ or 4″ FLG | Constant gallonage | Y3123 (ISO) |
| 1200, 1800, 2400 | AL | 3″ or 4″ FLG | Adjustable flow | Y3124 (ISO) |
| 1800-2400-3000 | AL | 3″ or 4″ FLG | Selectable gallonage | Y3125 (ISO) |
| Up to 3000 | AL | 3″ or 4″ FLG | Smooth bore tip | Y3126 (ISO) |
