Project Description
- Feature: K5.6 (K80), SR, upright
- W. pressure: 250 / 175 psi
- T. pressure: 500 psi, factory hydrostatic test
- O. pressure: Min 7 psi
- Surface: Rough brass / chrome plated / white painted, etc.
Product Details

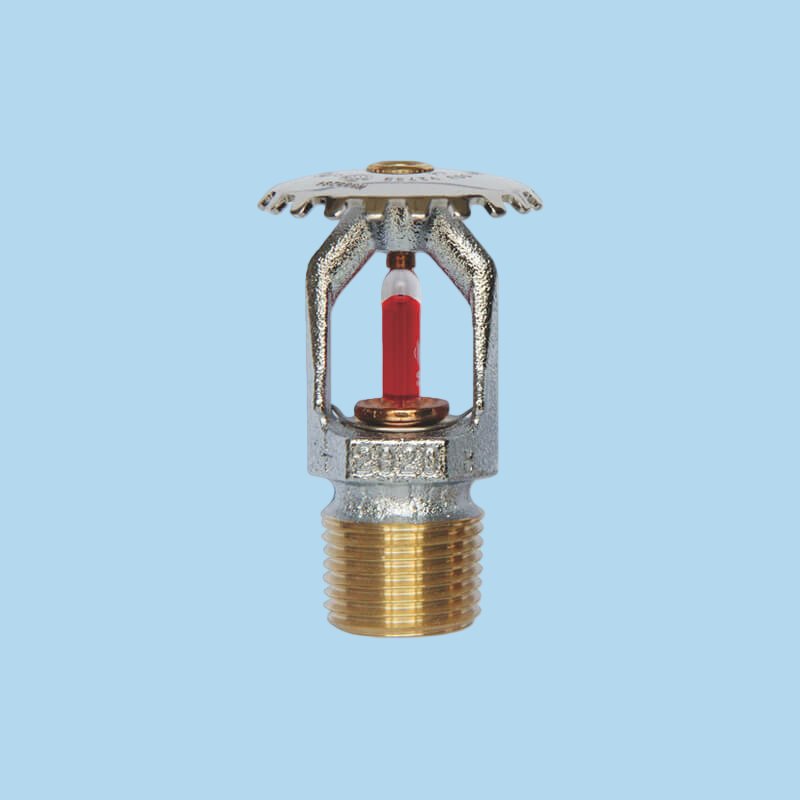

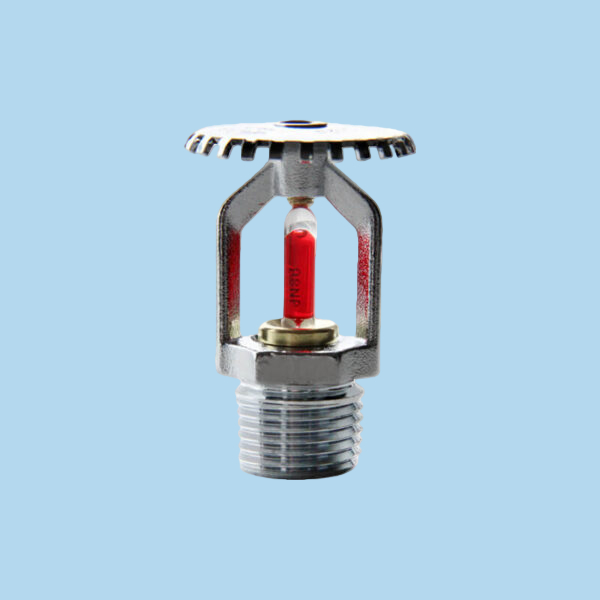

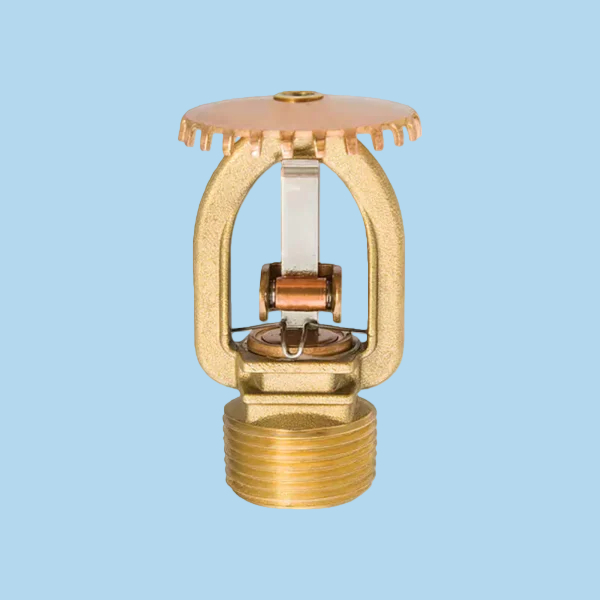

K5.6 standard response upright sprinkler is usually used in all hazard occupancies. The deflector is installed above the orifice, and the water spray is directed upwards against the deflector.
Available size (Source 1 with UL/FM)
| Type | Temperature rating | Working pressure (psi) | Ref. No. |
|---|---|---|---|
| Upright | 135°F (57°C) | 250 | S0101 (UL/FM) |
| Upright | 155°F (68°C) | 250 | S0102 (UL/FM) |
| Upright | 175°F (79°C) | 250 | S0103 (UL/FM) |
| Upright | 200°F (93°C) | 250 | S0104 (UL/FM) |
| Upright | 286°F (141°C) | 250 | S0105 (UL/FM) |
| Upright | 360°F (182°C) | 250 | S0106 (UL/FM) |
Available size (Source 2 with UL/FM)
| Type | Temperature rating | Working pressure (psi) | Ref. No. |
|---|---|---|---|
| Upright | 135°F (57°C) | 175 | S0121 (UL/FM) |
| Upright | 155°F (68°C) | 175 | S0122 (UL/FM) |
| Upright | 175°F (79°C) | 175 | S0123 (UL/FM) |
| Upright | 200°F (93°C) | 175 | S0124 (UL/FM) |
| Upright | 286°F (141°C) | 175 | S0125 (UL/FM) |
Available size (Source 3 with UL/FM)
| Type | Temperature rating | Working pressure (psi) | Ref. No. |
|---|---|---|---|
| Upright | 165°F (74°C) | 175 | S0131 (UL/FM) |
| Upright | 212°F (100°C) | 175 | S0132 (UL/FM) |
| Upright | 280°F (138°C) | 175 | S0133 (ISO) |
