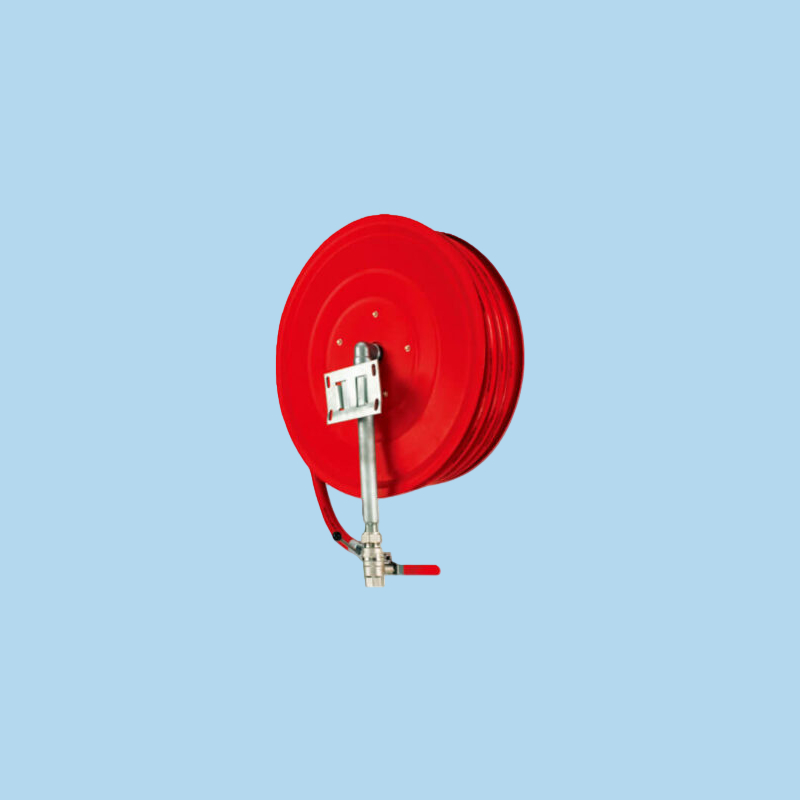

Fixed fire hose reel (Manual)

Standard: BS EN 671-1
W. pressure: 12 bar
Test / burst: 18 bar / 30 bar
Hose color: Red or black
Surface: Red powder coating (RAL 3000)

Product Details

Fixed fire hose reel (Manual) is normally installed in a building for the occupants to extinguish a small fire. It could not swing. For manual type, it is controlled by an external manual valve to release water into the hose.

Available size

Size	Nozzle material	Overall size H x W x D (mm)	Ref. No.
19 x 30, 3/4″	Nylon	720 x 555 x 230	FE6001
19 x 30, 3/4″	Brass	720 x 555 x 230	FE6002
25 x 30, 1″	Nylon	720 x 555 x 260	FE6003
25 x 30, 1″	Brass	720 x 555 x 260	FE6004

Note:
1. It is wall mounted only.
2. A rectangular shaped wall mounting bracket is pre-assembled, together with a holder wheel for easy operation.
3. It is also available to add a pressure gauge, which can be located in the middle of the disc or at the inlet of stop valve.
