Project Description
Certificate: LPCB Approved
Standard: BS EN 671-1
W. pressure: 12 bar
Test / burst: 18 bar / 30 bar
Hose color: Red or black
Surface: Red powder coating (RAL 3000)
Product Details

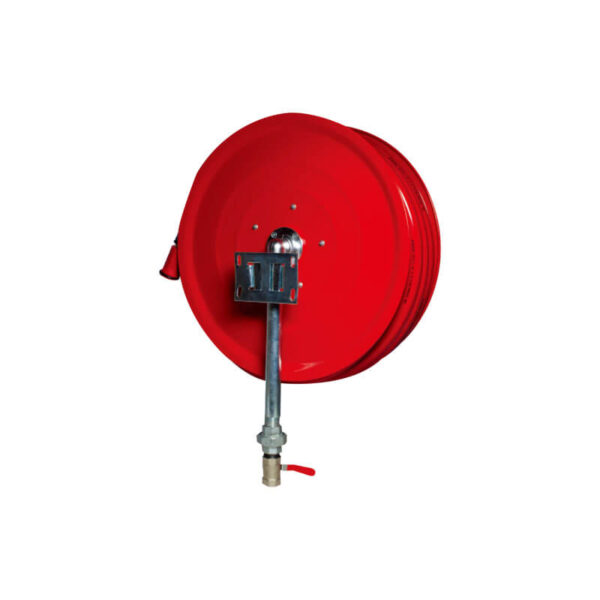

Fixed fire hose reel (Automatic) is normally installed in a building for the occupants to extinguish a small fire. It could not swing. For automatic type, rotation of the reel opens the valve automatically to release water.
Available size
| Size | Nozzle material | Overall size H x W x D (mm) | Ref. No. |
|---|---|---|---|
| 19 x 30, 3/4″ | Nylon | 720 x 555 x 240 | FE6101 |
| 19 x 30, 3/4″ | Brass | 720 x 555 x 240 | FE6102 |
| 25 x 30, 1″ | Nylon | 720 x 555 x 270 | FE6103 |
| 25 x 30, 1″ | Brass | 720 x 555 x 270 | FE6104 |
Note:
1. It is wall mounted only.
2. A rectangular shaped wall mounting bracket is pre-assembled, together with a holder wheel for easy operation.
3. It is also available to add a pressure gauge, which can be located in the middle of the disc or at the inlet of stop valve.
